Multi Axis Products

Macron Engineering Webinar - Linear Actuators

STEP 1
Please Select an Axis

STEP 2
Category

STEP 3
Orientation

STEP 4
Load/Force

0

1000

STEP 5
Speed

0

5000

STEP 6
Acceleration

0

5

STEP 7
Z-Axis Stroke

0

5000

MGS-HBG-08
MGS-HBG-08

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 5[5]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 1

View and Configure

MGS-PSC-XZ
MGS-PSC (X/Z)

Orientation: Horizontal, Vertical
Max Load – Vertical – lbs.: 10
Max Speed – Horizontal [Vertical] – mm/sec: 2000[1000]
Acceleration (Gs): 1
Z-axis Stroke: 150mm - 500mm

View and Configure

MCS-HBG-12
MCS-HBG-12

Orientation: Horizontal
Max Load – Vertical – lbs.: 10
Max Speed – Horizontal [Vertical] – mm/sec: 5000[500]
Acceleration (Gs): 5
Z-axis Stroke: 100mm - 300mm

View and Configure

MGS-TBG-12
MGS-TBG-12

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 10[10]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 1000mm

View and Configure

MGS-HBG-12
MGS-HBG-12

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 10[10]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5

View and Configure

MGS-R6D-SCREW-Z
MGS-R6D (Screw Z)

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[500]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 300mm

View and Configure

MGS-R5D-SCREW-Z
MGS-R5D (Screw Z)

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[500]
Acceleration (Gs): 1
Z-axis Stroke: 150mm - 300mm

View and Configure

MCS-R15-SCREW-Z
MCS-R15 Screw

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[500]
Acceleration (Gs): 2
Z-axis Stroke: 100mm - 300mm

View and Configure

MCS-R15-BELT-Z
MCS-R15 Belt

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 500mm

View and Configure

MGS-R5D
MGS-R5D (Belt Z)

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 1
Z-axis Stroke: 150mm - 500mm

View and Configure

MCS-R6S BELT Z
MCS-R6S Belt Z

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 15[15]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

MCS-R6S SCREW Z
MCS-R6S Screw Z

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 15[15]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 650mm

View and Configure

MGS-PSC-XXYY
MGS-PSC XXYY

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 15[15]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 1

View and Configure

MGS-628
MGS-628

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[20]
Max Speed – Horizontal [Vertical] – mm/sec: 2000[2000]
Acceleration (Gs): 1

View and Configure

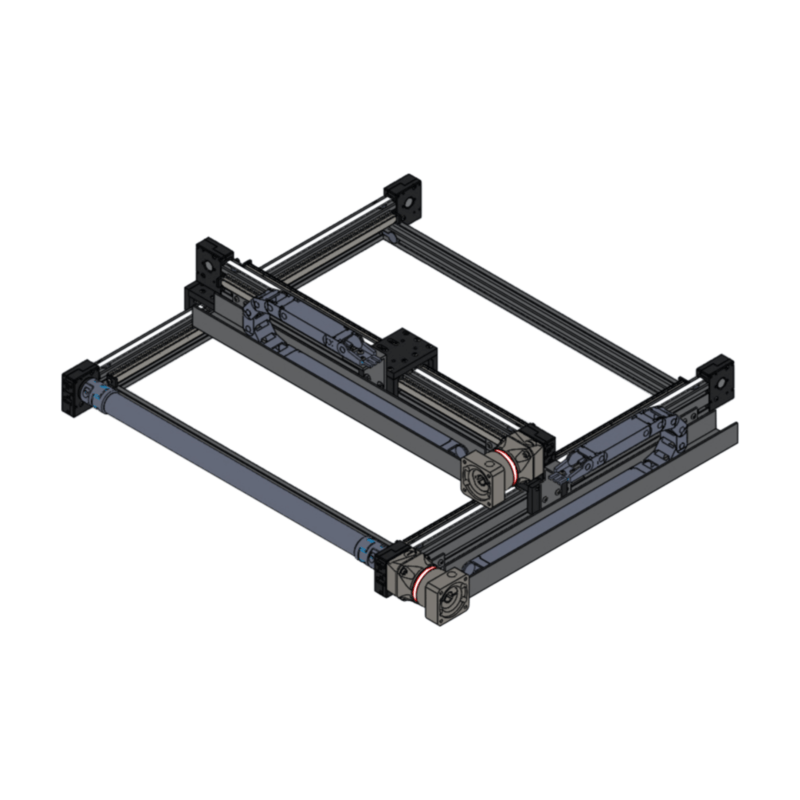

MGS-R15
MGS-R15

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[20]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3

View and Configure

MCS-PSC BELT Z
MCS-PSC

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 21[21]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 1
Z-axis Stroke: 150mm - 300mm

View and Configure

MCS-HBG-25
MCS-HBG-25

Orientation: Horizontal
Max Load – Vertical – lbs.: 25
Max Speed – Horizontal [Vertical] – mm/sec: 5000[2000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 600mm

View and Configure

MGS-R6D BELT Z
MGS-R6D (Belt Z)

Orientation: Horizontal
Max Load – Vertical – lbs.: 25
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

MCS-R6Y
MCS-R6Y

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 25[25]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

MGS-M6S
MGS-M6S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 40[40]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2

View and Configure

MCS-HBG-50
MCS-HBG-50

Orientation: Horizontal
Max Load – Vertical – lbs.: 50
Max Speed – Horizontal [Vertical] – mm/sec: 5000[500]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 900mm

View and Configure

MGS-R6Y
MGS-R6Y XZ

Orientation: Horizontal
Max Load – Vertical – lbs.: 50
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

MGS-R6S
MGS-R6S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3

View and Configure

MGS-TBG-25
MGS-TBG-25

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 1000mm

View and Configure

MGS-HBG-25
MGS-HBG-25

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5

View and Configure

MGS-R6Y-XXYY
MGS-R6Y XY

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2

View and Configure

MCS-UC1
MCS-UC1

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 75[75]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

MGS-HBG-50
MGS-HBG-50

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 100[100]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5

View and Configure

MGS-TBG-50
MGS-TBG-50

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 100[100]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 2000mm

View and Configure

MCS-UC2
MCS-UC2

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 125[125]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1500mm

View and Configure

MGS-UC1
MGS-UC1

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 150[150]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3
Z-axis Stroke: 150mm - 1000mm

View and Configure

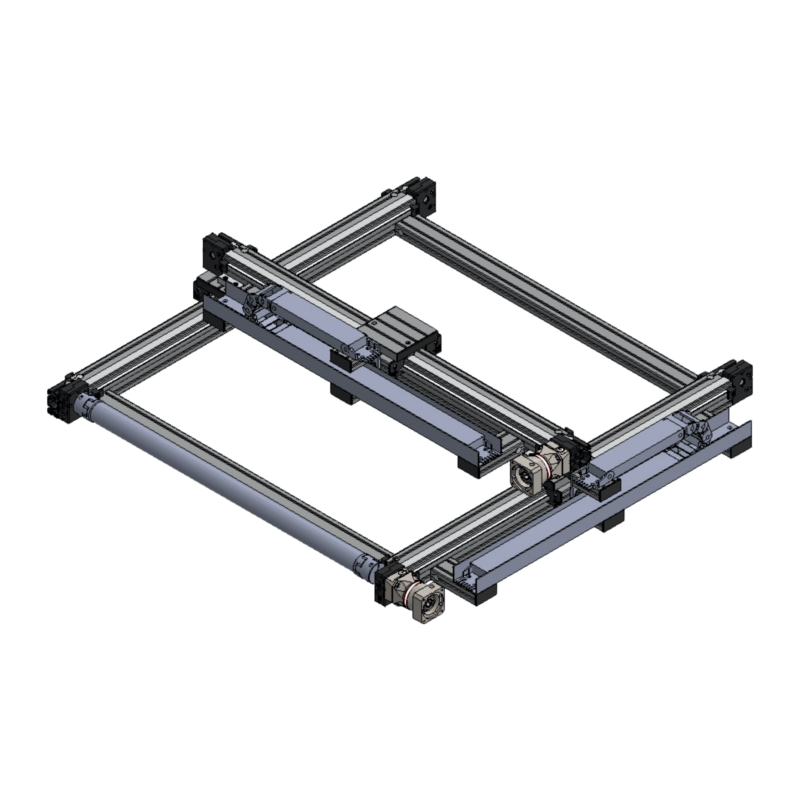

MGS-14S
MGS-14S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 200[200]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 3

View and Configure

MGS-UC2
MGS-UC2

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 300[300]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3
Z-axis Stroke: 150mm - 1500mm

View and Configure

MGS-UC4
MGS-UC4

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 300[300]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3
Z-axis Stroke: 150mm - 1500mm

View and Configure

MGS-14H
MGS-14H

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 500[500]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 8000mm

View and Configure

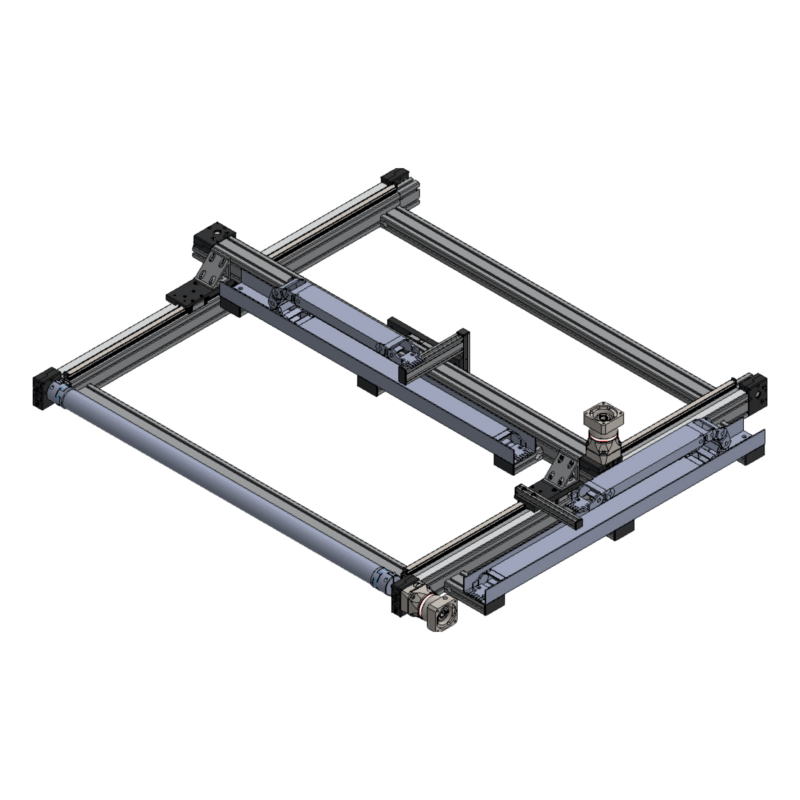

MGS-R20
MGS-R20

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 500[500]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3

View and Configure

MGS-UC3
MGS-UC3

Orientation: Vertical
Max Load – Vertical – lbs.: 900
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3
Z-axis Stroke: 150mm - 2000mm

View and Configure

MCS-UC3
MCS-UC3

Orientation: Vertical
Max Load – Vertical – lbs.: 900
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 3000mm

View and Configure

No products match search criteria.

Please refine search for products.
