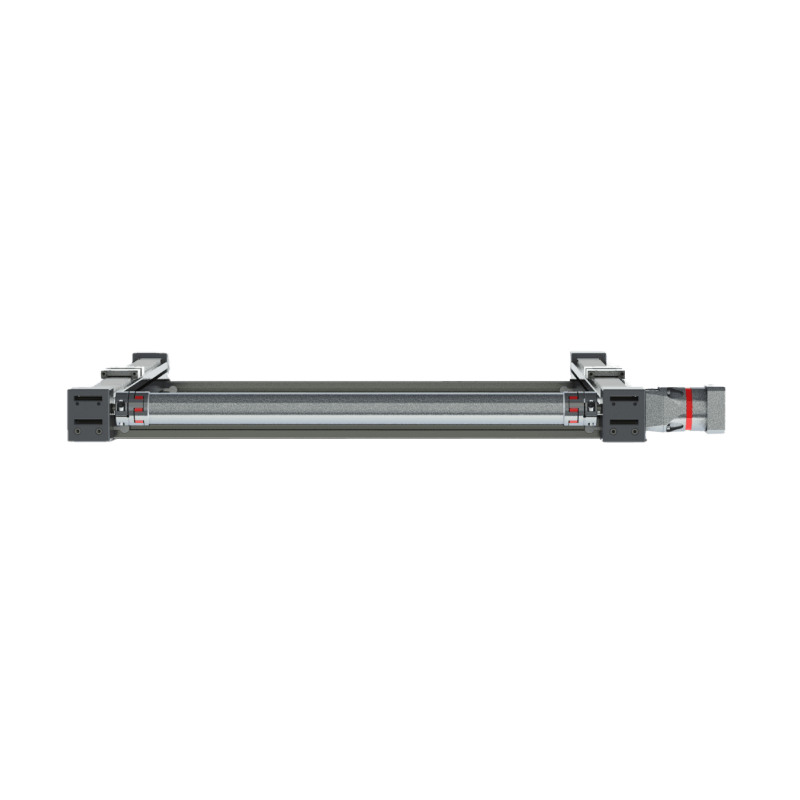

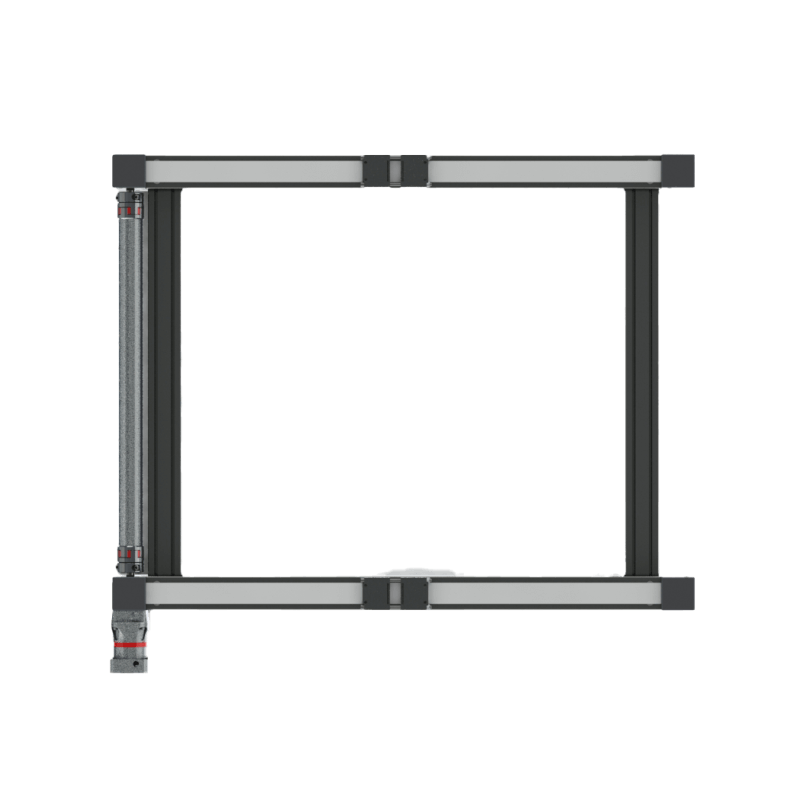

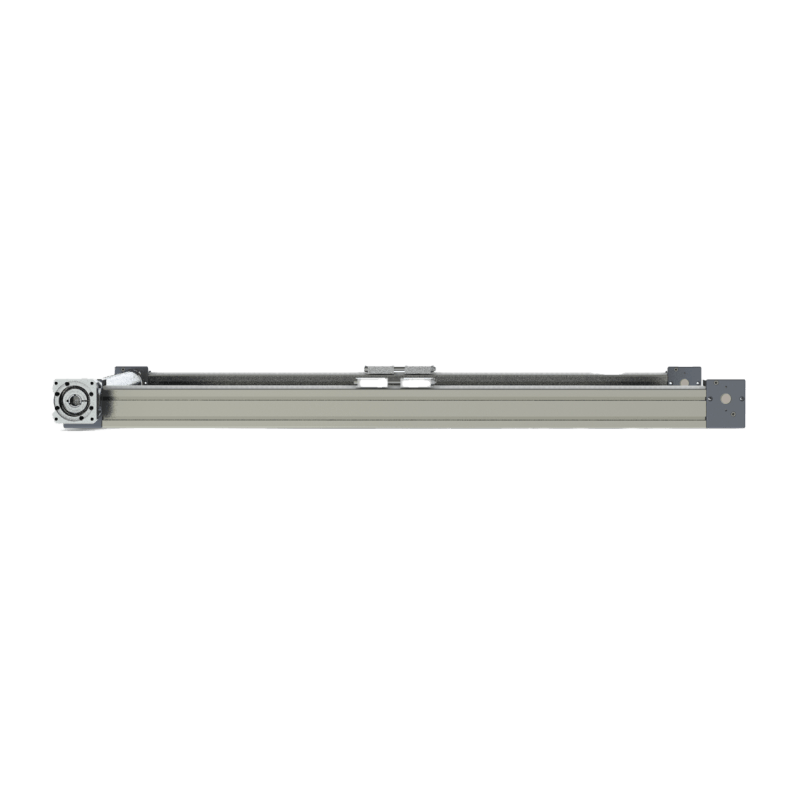

MDS-SB5

Features:

  • X-X’ configuration.
  • Connection Hardware and Torque Tube included with the Assembly.
  • User defined Strokes and Spacing.
  • Center Drive Right Angle Reducer offered upon request.
  • Multiple Carts Available upon request.
  • Mounting flexibility in either horizontal, vertical or inverted orientation.

Notes:

  • Center to Center spacing is the distance between each actuator cart’s center line.
  • Each X-X’ system can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • Some X-X’ systems include cable track. Please refer to the Product Specification download document for the standard size.
  • Motor sizing information is provided in the Product Specification download document.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Datasheets

Specifications

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 5000[5000]
Max Force - Horizontal[Vertical] - lbf 1150[1150]
Repeatability - mm +/- 0.0625
Moment Load - in-lbs[Nm] N/A
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 5
Recommended Belt Running Load - lbf[N] 1150[5118]
Cart Guide N/A
Weight
System Weight - kg ((Travel in meters x 5.5) + 6.7) x 2
Motor Sizing Information
Weight of Cart - lbs[kgs] N/A
Weight of Belt - kgs based on travel selected (((Travel in meters x 2)+ .74)) x 0.34
Travel per Revolution - mm 150
Pulley Pitch Diameter - mm 47.75
Pulley Material / Width - mm Steel / 54.0
Breakaway Torque - oz-in N/A
Coefficient of Friction 0.1
Rolling Resistance - lbs / kgs N/A
Travels (25mm increment)
X Axis Travel - min to max 150 to 5850

Configurate a MDS-SB5

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MDS-SB5-x-y-z

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

EDC PDF Thumbnail
EDC Distance Coupling Installation

Download

Videos

Single Axis Actuator Videos

Accessories

Item # 399-50, Tensioning Tool – 50mm Belts

Item # 397, Torque Wrench 25-250 lbs-in
