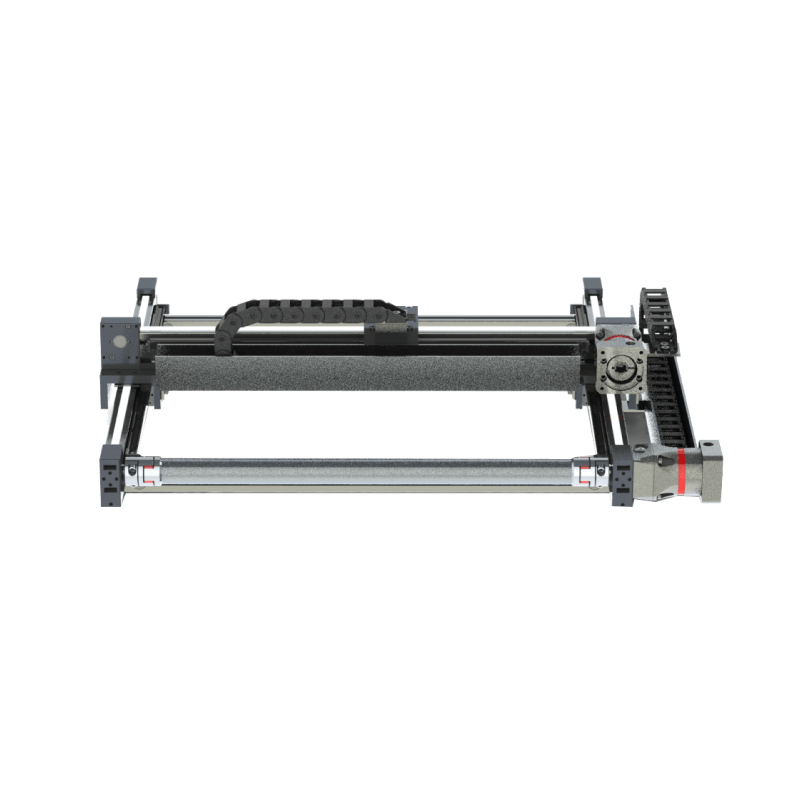

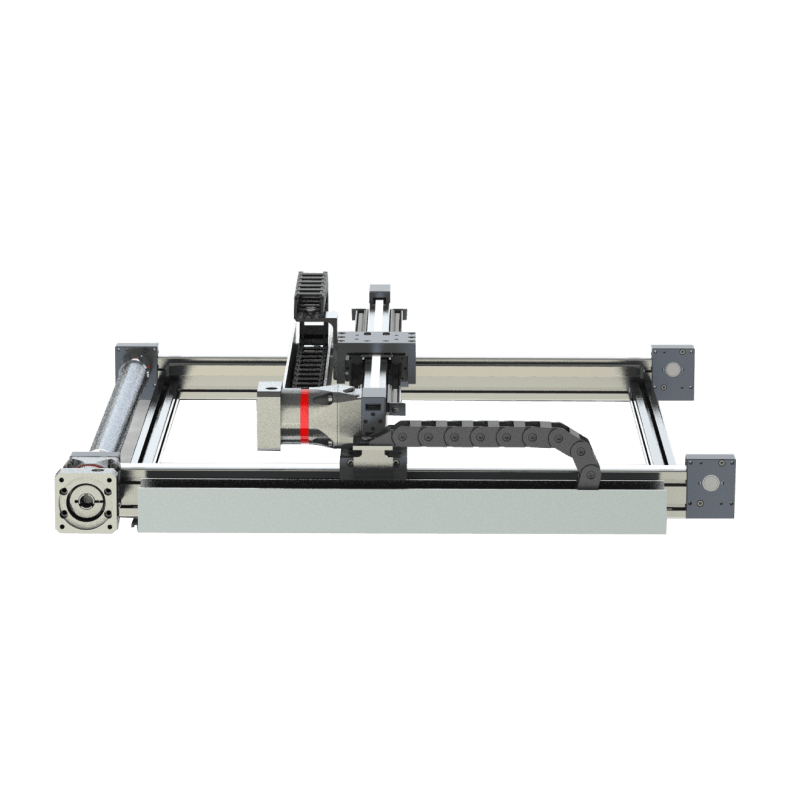

MGS-R15

Features:

  • XX-Y’ configuration.
  • Connection Hardware and Torque Tube included with the Assembly.
  • User defined Strokes for Each Axis.
  • Center Drive Right Angle Reducer offered upon request.
  • Mounting flexibility in either horizontal, vertical, or inverted orientation.

Notes:

  • Each XX-Y’ system can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • All XX-Y systems include cable track. Please refer to the Product Specification download document for the standard size.
  • Motor sizing information is provided in the Product Specification download document.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Datasheets

Datasheet - MGS-R15

Specifications

Did You Know We Offer

  • Longer Travel or Stroke Lengths
  • Custom Cart Orientation & Features
  • Physically Smaller Sizes
  • Increased Repeatability & Accuracy
  • Water Resistant & Washdown Upgrades

Please click to learn more.

Learn More
Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 3000[3000]
Max Load - Horizontal[Vertical] - lbs 20[20]
Repeatability - mm +/- 0.10
Moment Load - in-lbs[Nm] 620[70]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 3
Recommended Belt Running Load - lbf[N] 200[889]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg See Data Sheet
Motor Sizing Information
Weight of Cart - lbs[kgs] See Data Sheet
Weight of Belt - kgs based on travel selected See Data Sheet
Travel per Revolution - mm See Data Sheet
Pulley Pitch Diameter - mm See Data Sheet
Pulley Material / Width - mm See Data Sheet
Breakaway Torque - oz-in 12 to 14
Coefficient of Friction 0.2
Travels (25mm increment)
X Axis Travel - min to max 150 to 6000
Y Axis Travel - min to max 150 to 1000

Configure a Standard Model MGS-R15

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Travels (in 25mm increments)

Please Give Me Options For:

MPS-062 Inline Gearbox
MRS-062 Right Angle Gearbox
MRH-062 Right Angle Gearbox
MPG-062 Inline Gearbox
T-Slot Sensor Kits
Transistor Logic
Switching Configuration
Cord Extension Length

Part Number As Configured

MGS-R15-x-y-z

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None
