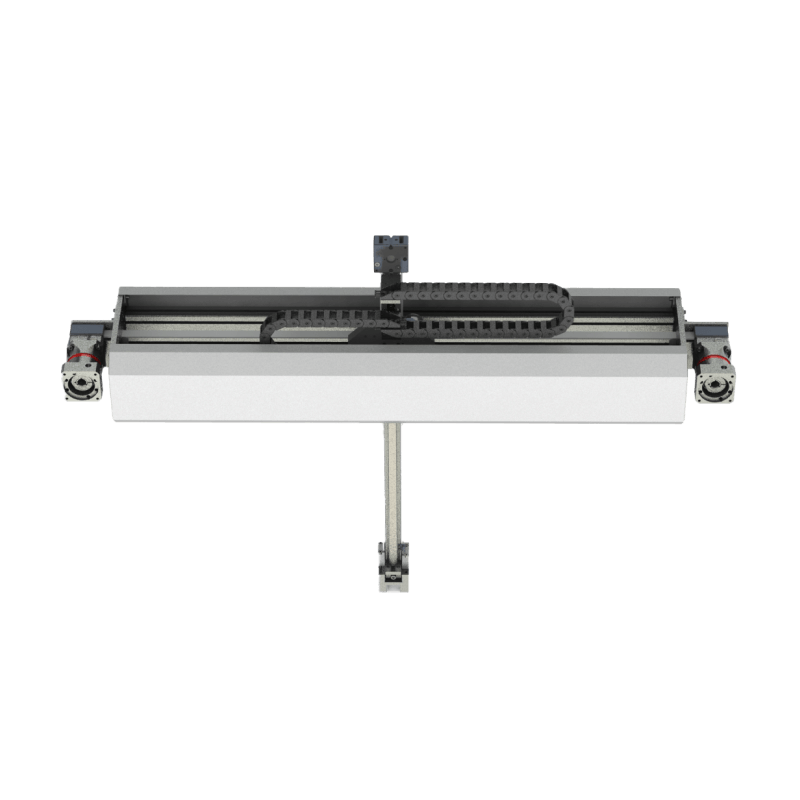

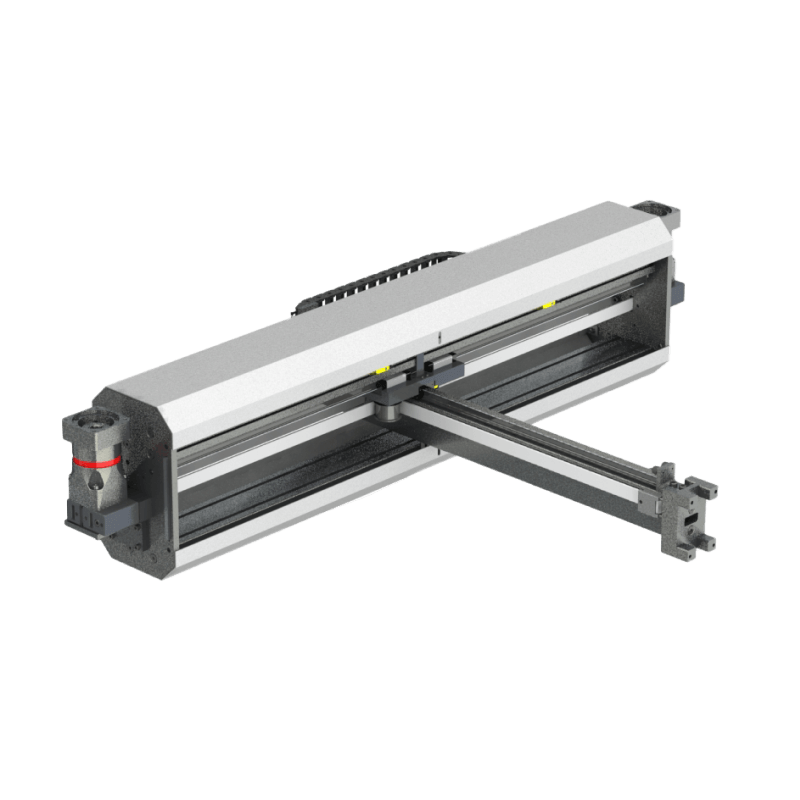

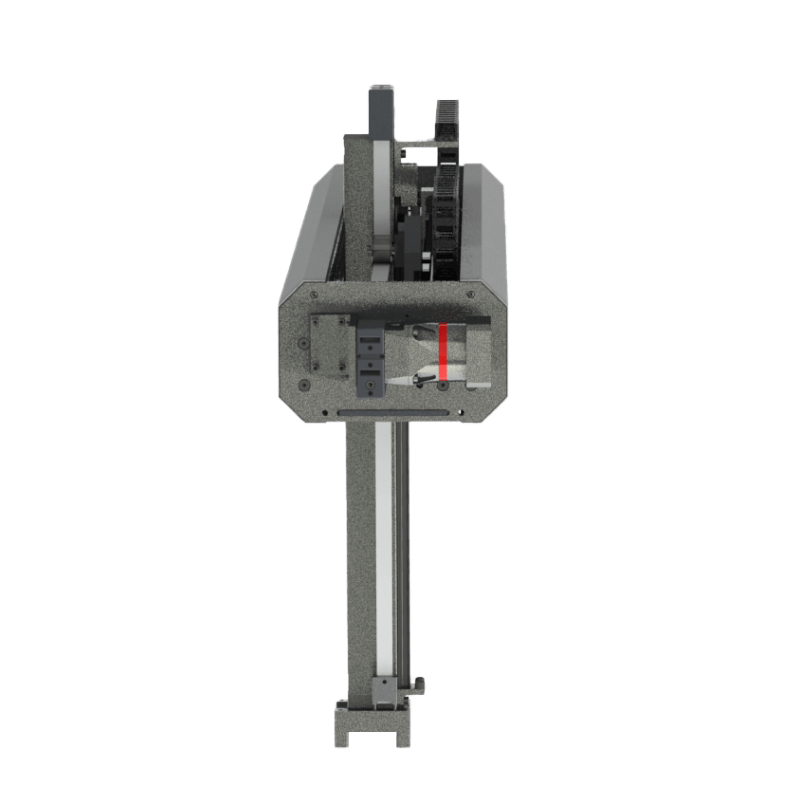

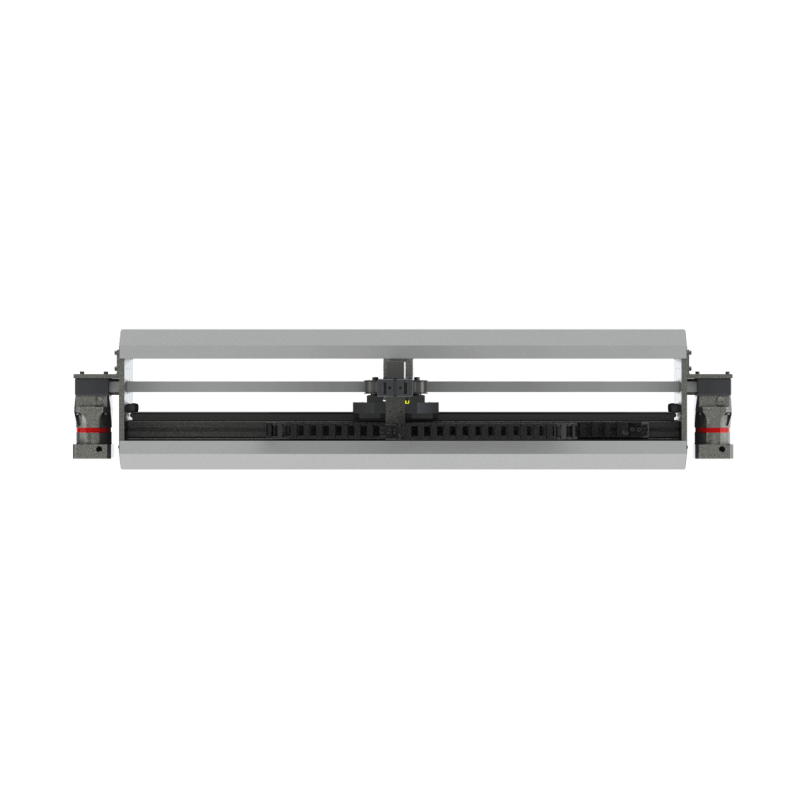

MGS-TBG-25

Features:

  • T-Bot configuration. (X/Z)
  • High speed, high performance 2 axis Linear robot.
  • Simple design: One single belt drives both axes.
  • Two fixed motor mounting locations.
  • Fixed motors reduce load, cable management and inertia requirements.
  • Designed for very high acceleration and velocities.
  • Mounting flexibility in either horizontal or vertical orientation.

Notes:

  • Tbot Linear Robots can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • Tbot Linear Robots include cable track. Please refer to the Product Specification download document for the standard size.
  • Motor sizing information is provided in the Product Specification download document.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Specifications

Did You Know We Offer

  • Longer Travel or Stroke Lengths
  • Custom Cart Orientation & Features
  • Physically Smaller Sizes
  • Increased Repeatability & Accuracy
  • Water Resistant & Washdown Upgrades
Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 5000[5000]
Max Load - Horizontal[Vertical] - lbs 50[50]
Repeatability - mm +/- 0.039
Moment Load - in-lbs[Nm] 1062[120]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 5
Recommended Belt Running Load - lbf[N] 437[1945]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg See Data Sheet
Motor Sizing Information
Weight of Cart - lbs[kgs] See Data Sheet
Weight of Belt - kgs based on travel selected See Data Sheet
Travel per Revolution - mm See Data Sheet
Pulley Pitch Diameter - mm See Data Sheet
Pulley Material / Width - mm See Data Sheet
Breakaway Torque - oz-in 30 to 32
Coefficient of Friction 0.2
Travels (25mm increment)
X Axis Travel - min to max 150 to 2000
Z Axis Travel - min to max 150 to 1000

Configure a Standard Model MGS-TBG-25

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MGS-TBG-25-x-y-z

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None
