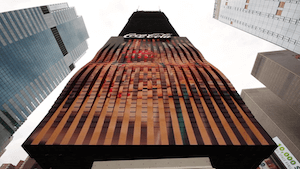

Macron Dynamics was proud to contribute to the success of launching the new 3D billboard in Times Square for a major global beverage maker.
A modified MacBuilt, Macron 14 actuator with two carts features a dual action centering drive based upon attachments to belt locations on either sides of the actuator.
A hand crank moved by a Macron counter-reversing drive provides smooth guided linear motion required for a precision measuring device.
This is a Mac Built, Macron 14 actuator, 150 feet long, but still not the longest one we've ever built - a whopping 225 feet long!

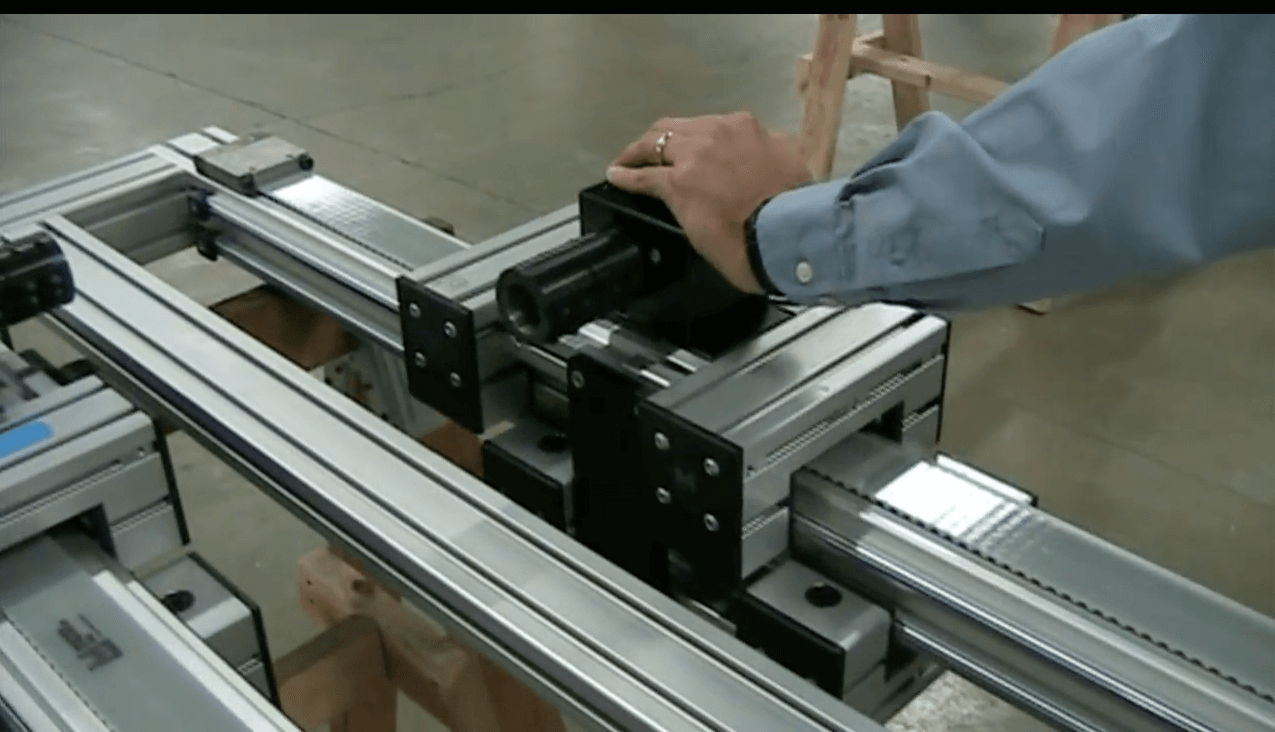

The counter-reversing drive system or "Omega" drive, as it is sometimes called, mimics the action of a rack and pinion by rotating a toothed drive pulley which is attached to the cart. Instead of using a stationary drive from the end of the actuator, this one must carry the motor with the load.
See different applications for Linear Robotics, including a Mac-in-a-Box, T-Bot, High-Speed H-Bot Gantry and more.
Check out the Macron X/Z Gantry we showcased at a recent event, and see how Macron Dynamics can help solve your custom automation needs.
Macron Dynamics recently worked with USA to build a dynamic wall entryway for the Museum of Mathematics in NYC.
Students at NC State recently engineered a system to assist weight lifters. The lifting partner was programmed to initiate new exercise sets and wait for a struggle during the tracking portion, to prevent athletes dropping heavy weights on themselves.
Macron 14 series long stroke belt actuators and MacFRAME components were designed into a useful machine for cutting tube profiles for welded fittings.
We have experience developing automation solutions for the packaging industry, just like this carton automation system.
These vintage slapshot hockey and football games use a reliable actuator, that lasted 10 years without any issues!

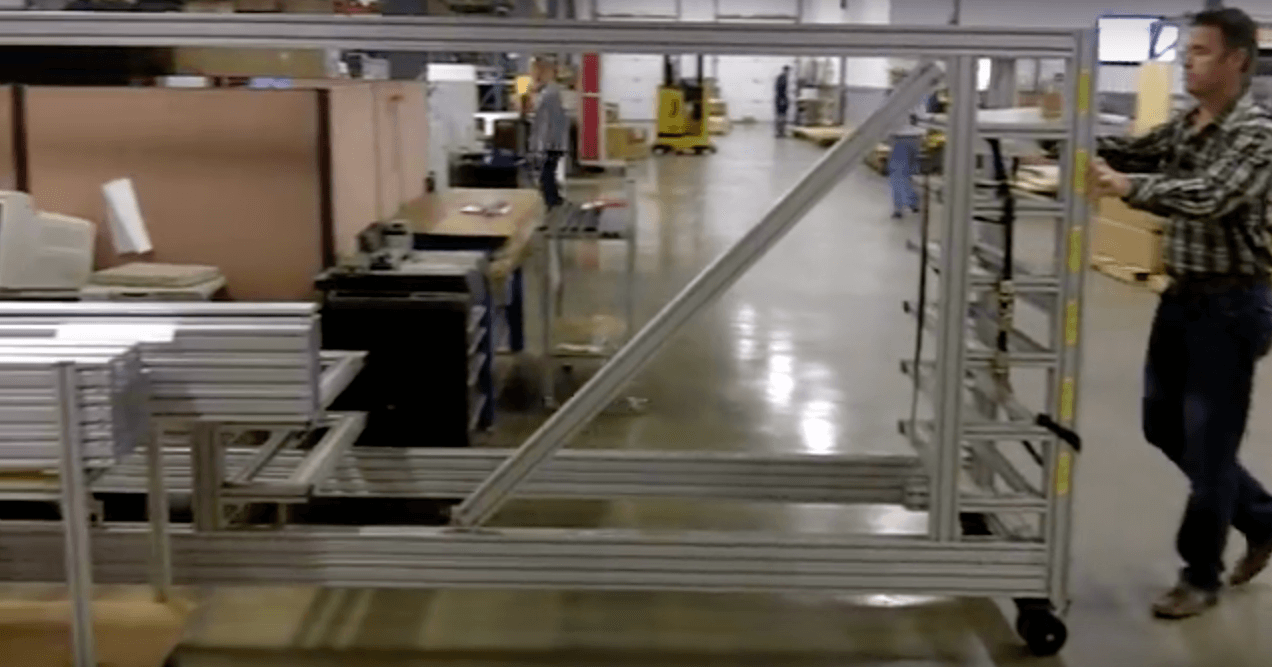

These carts carried two tons of products back and forth for USPS during a 6 year period providing stabilized loads, maximum density and protection.
See how these telescopic actuators are ganged together to make an extended reach shuttle transfer system.
